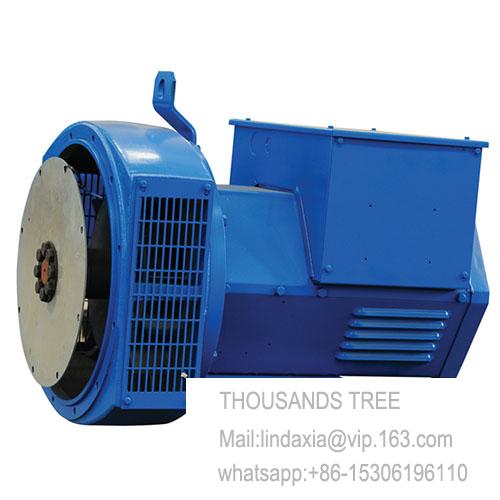

AC STAMFORD TYPE 2 POLE 3000RPM 3600RPM BRUSHLESS ALTERNATOR - 副本

Product Item : TR162/182
Category： ALTERNATOR
Stamford Type lternator
3000RPM 3600RPM
Three Phase Single phase
50HZ 60HZ
Product description：SINGLE PHASE THREE PHASE TWO POLE 3000RPM 3600RPM 50HZ 60HZ STAMFORD TYPE ALTERNATOR BRUSHLESS ALTERNATOR 162D 162E 162F 162G 182H 182J 182K
Order online

Generator Rating Table (2-pole 3-phase rating)
Model	Three Phase 50Hz 3000PM								Three Phase 60Hz 3600RPM
Power Factor	0.8		0.8		0.8		0.8		0.8		0.8		0.8		0.8
Volts
Series Star	380		400		415		440		416		440		460		480
Parallel Star	190		200		208		220		208		220		230		240
Series Delta	220		230		240		254		240		254		266		277
Winding No.	11		11		11		11		11		11		11		11
Rating	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW
TR162D	12.5	10.0	12.5	10.0	12.5	10.0	12.0	9.6	14.7	11.8	15.6	12.5	15.6	12.5	15.6	12.5
TR162E	15.0	12.0	15.0	12.0	15.0	12.0	14.5	11.6	17.8	14.2	18.8	15.0	18.8	15.0	18.8	15.0
TR162F	17.5	14.0	17.5	14.0	17.5	14.0	16.5	13.2	20.8	16.6	21.9	17.5	21.9	17.5	21.9	17.5
TR162G	25.0	20.0	25.0	20.0	25.0	20.0	22.5	18.0	29.6	23.7	31.3	25.0	31.3	25.0	31.3	25.0

TR182H	30.0	24.0	30.0	24.0	30.0	24.0	27.0	21.6	33.0	26.4	35.0	28.0	35.0	28.0	35.0	28.0
TR182J	35.0	28.0	35.0	28.0	35.0	28.0	30.8	24.6	37.8	30.2	40.0	32.0	40.0	32.0	40.0	32.0
TR182K	37.5	30.0	37.5	30.0	37.5	30.0	35.0	28.0	44.3	35.4	46.9	37.5	46.9	37.5	46.9	37.5

Generator Rating Table (2-pole 1-phase rating)
Model	Single Phase 50Hz 3000RPM												Single Phase 60Hz 3600RPM
Power Factor	0.8		0.8		0.8		1.0		1.0		1.0		0.8		0.8		0.8		1		1		1
Volts
Series	220		230		240		220		230		240		220		230		240		220		230		240
Parallel	110		115		120		110		115		120		110		115		120		110		115		120
Winding No.	05		05		05		05		05		05		06		06		06		06		06		06
Rating	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW
TR162D	8.4	6.7	8.4	6.7	8.4	6.7	9.6	9.6	9.6	9.6	10.0	10.0	10.0	8.0	10.0	8.0	10.0	8.0	11.5	11.5	11.5	11.5	12.0	12.0
TR162E	10.0	8.0	10.0	8.0	10.0	8.0	11.5	11.5	11.5	11.5	12.0	12.0	12.4	9.9	12.4	9.9	12.4	9.9	12.8	12.8	12.8	12.8	15.0	15.0
TR162F	11.8	9.4	11.8	9.4	11.8	9.4	13.5	13.5	13.5	13.5	14.5	14.5	14.4	11.5	14.4	11.5	14.4	11.5	16.6	16.6	16.6	16.6	17.5	17.5
TR162G	16.8	13.4	16.8	13.4	16.8	13.4	17.5	17.5	18.5	18.5	19.3	19.3	20.6	16.5	20.6	16.5	20.6	16.5	23.7	23.7	23.7	23.7	22.0	22.0

TR182H	20.0	16.0	20.0	16.0	20.0	16.0	20.0	20.0	20.0	20.0	20.0	20.0	24.8	19.8	24.8	19.8	24.8	19.8	24.8	24.8	24.8	24.8	24.8	24.8
TR182J	23.5	18.8	23.5	18.8	23.5	18.8	23.5	23.5	23.5	23.5	23.5	23.5	28.9	23.1	28.9	23.1	28.9	23.1	28.9	28.9	28.9	28.9	28.9	28.9
TR182K	25.0	20.0	25.0	20.0	25.0	20.0	25.0	25.0	25.0	25.0	25.0	25.0	31.0	24.8	31.0	24.8	31.0	24.8	31.0	31.0	31.0	31.0	31.0	31.0
